Overview
The original Test Fixture (USB-TF-HS-Host-V21) designed by Allion since
2013. there was some issues : SMA connectors damaged easiler, Jumper setting
confuesd, Self Power indicate confused.

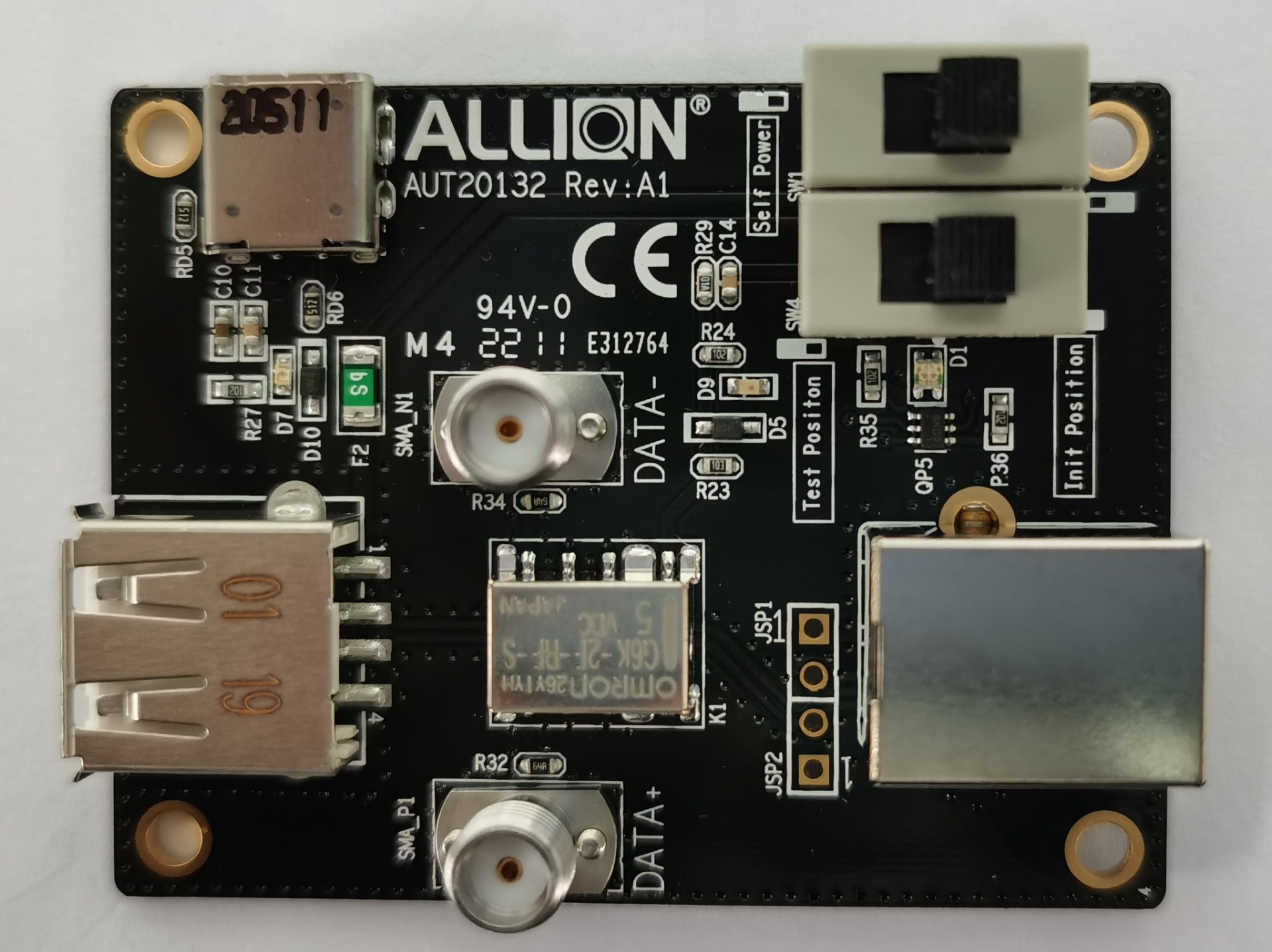

Allion design a brandnew Product AUT20132 in 2020, which reduce the risk of
the SMA damage(easy to change the SMA Connecot), improve the quality of the
USB 2.0 Signals, redisgn the jumper to be a switch, Slef Power connector
changed to USB Type-C.
Features
1. High-Speed Device Signal Quality Test (EL_2, 4, 5, 6, and 7)
2. Eye Pattern
Product Specification
1.One USB A Receptecl Connector
2.One USB B Receptecl Connector
3.Two SMA Connectors
4.Two Slide Swict to Switch Power Source and Initiate/Test Port.
5. 1x4 Pin Header for other Testing Implementation
6.Dimension : 57.79 mm x 44.96 mm
