Overview
This AUT20010 is an USB Legacy Inrush test Fixture which has designed for USB-IF certification tests. Any Legacy device would like to get certification should pass the test followed USB-IF test requirement and methodology.
The Fixture is one of USB SQiDD Jig for execute Signal Quality and Inrush certificate test.
The designed Test Fixture has improved previous version of test fixture, it is getting smaller and well control on Signals and Power to decrease the signals and Power loss when execute the certificate test.
Feature

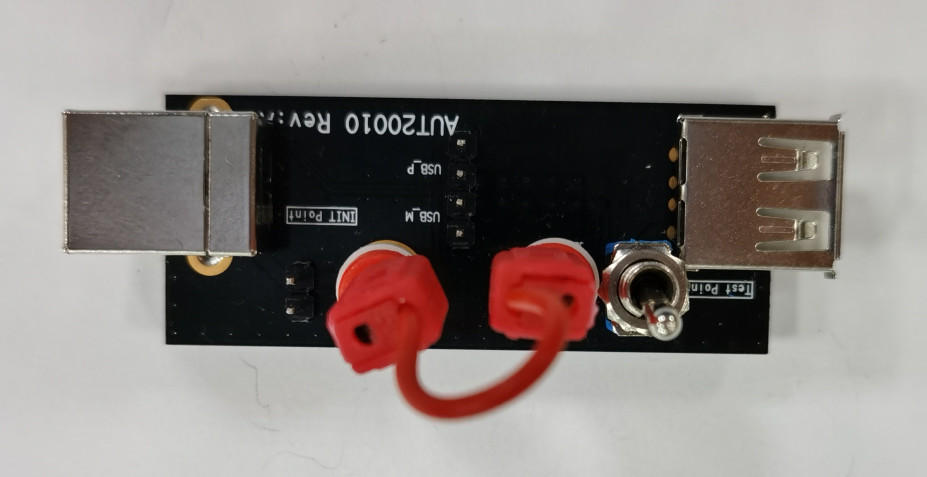

- One USB B Connector
- One USB A Receptacle Connector
- 1x4 Pin Headers for HS/FS Signal Quality Test
- 2 Banana Headers for Current measurement
- 1x2 Pin Headers for VBus Measurement
- Toggle Switch for Inrush Test.
