There were two different Test Fixture for Intel USB-C 3.1 Tx/Rx Test，One for UFP, the other one for DFP。It's easy to confuse when you are going to perform the test, the other serious problem was the damage quicky esailer after couple months usage. EXpensive but damage quickly,
ps.This is a replacement test fixture for Host 1C & Device 1C in USB31CET Kits.To perform the related Test , you need to have rest of UAB31CET kits Test Fixtures.

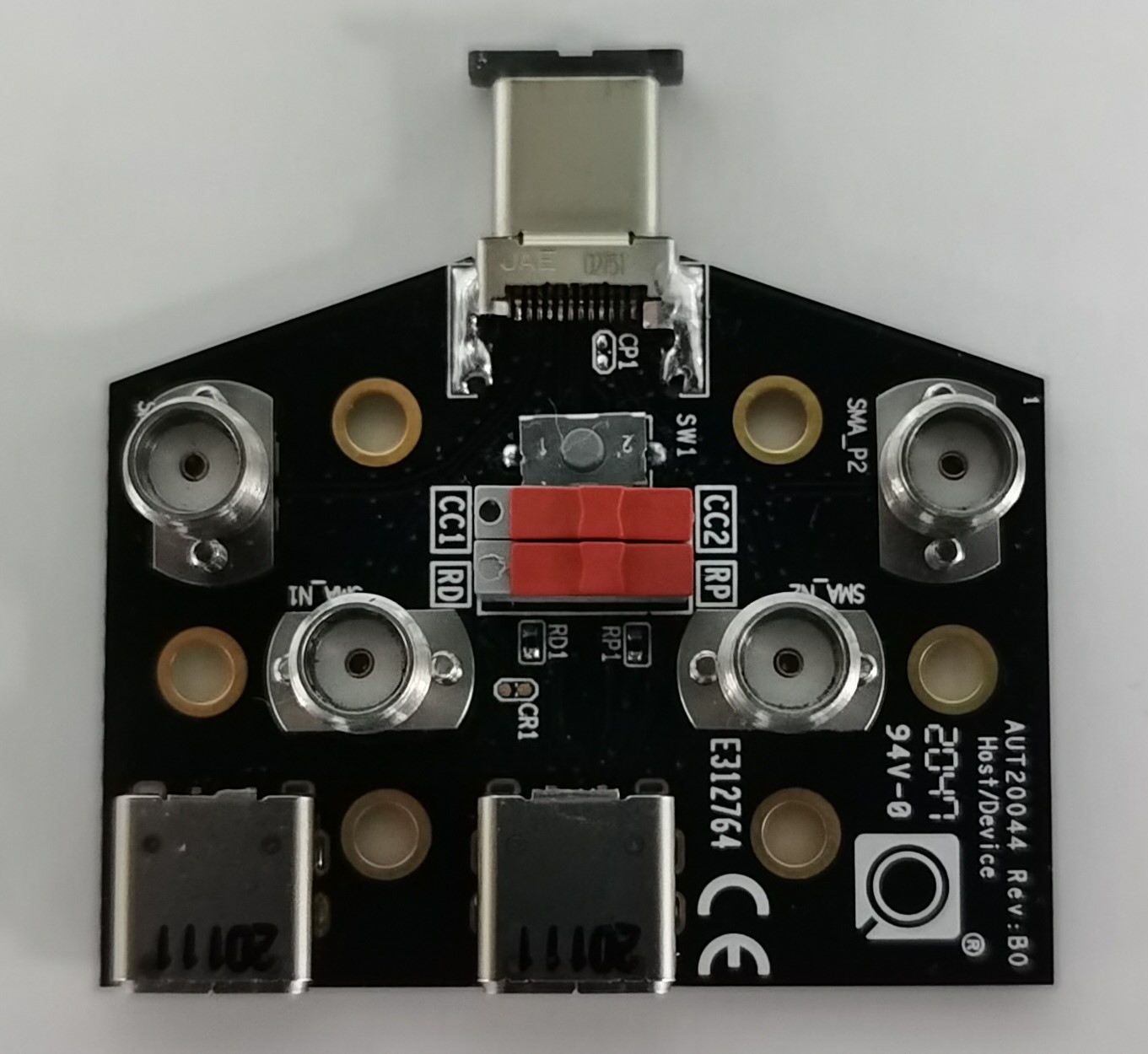

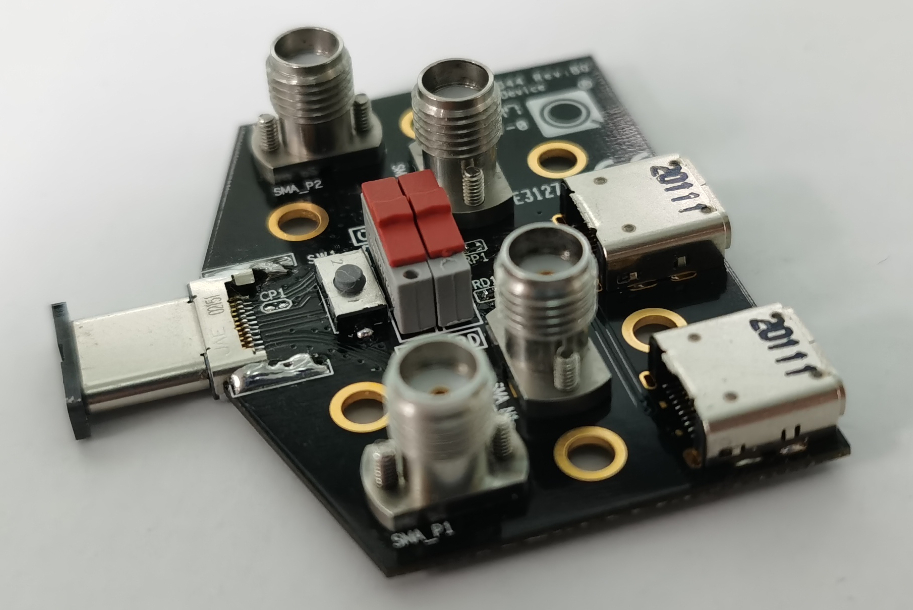

What you can do? Here is A new Pre-Cert Fixture which design by Allion Test Labs. all function were totaly the same and combine two fixture into one Board. Easier use by use Slide switch, you don't need to use jumper header with you huge finger, Power by Type-C Connector for DFP Testing,
1.Combine UFP/DFP testing in one Fixture
2.Better Signals quality than orignal Test Fixture
- One USB C Rceptacle
- One USB C Plug
- Four SMA connectors for SSTX1/SSTX2
- Two Slide Switch for CC1/CC2 & RP/RD Setting
- Type-C Connector for External Power in UFP Testing
