Model Name : APT21070a/APT21070b/APT21070c
Overview
Worldwide First PCIe Gen5 M.2 Test Fixture Sets，
Separated 4 Lanes M.2 PCIe Signals to 2 boards for measurement。
Modulize & Vairty Cable Assmebly.
Features
M.2 PCI Express Gen4 & Gen5 Compliance Test for Tx/Rx
Product Specification

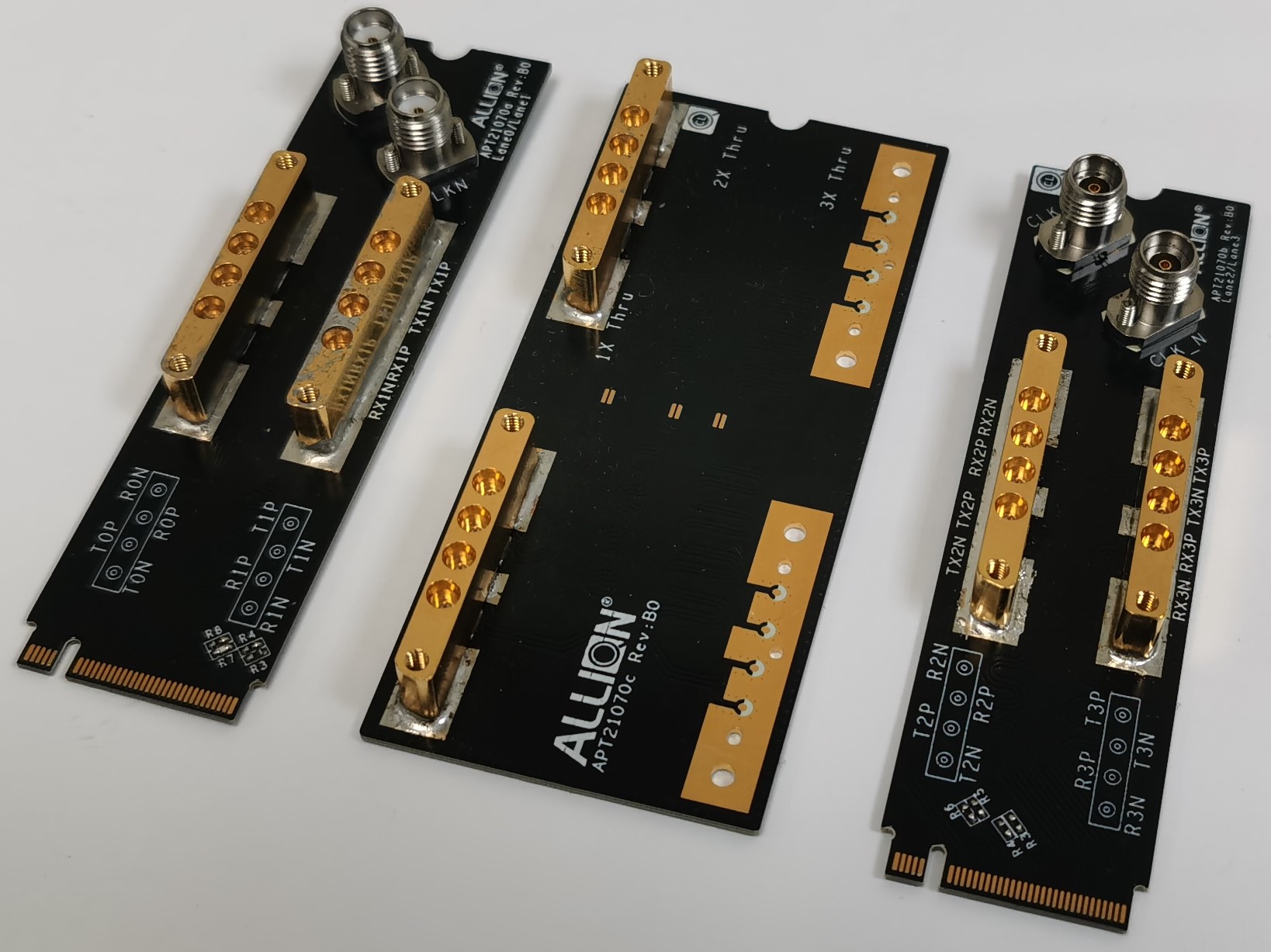

APT21070a
1. PCIe M.2 M-Key Golden Finger
2. Two SMPM Connector for Lane0/Lane1
3.Two SMA Connector for Reference Clock
4. Dimesion : 22mm x 80mm

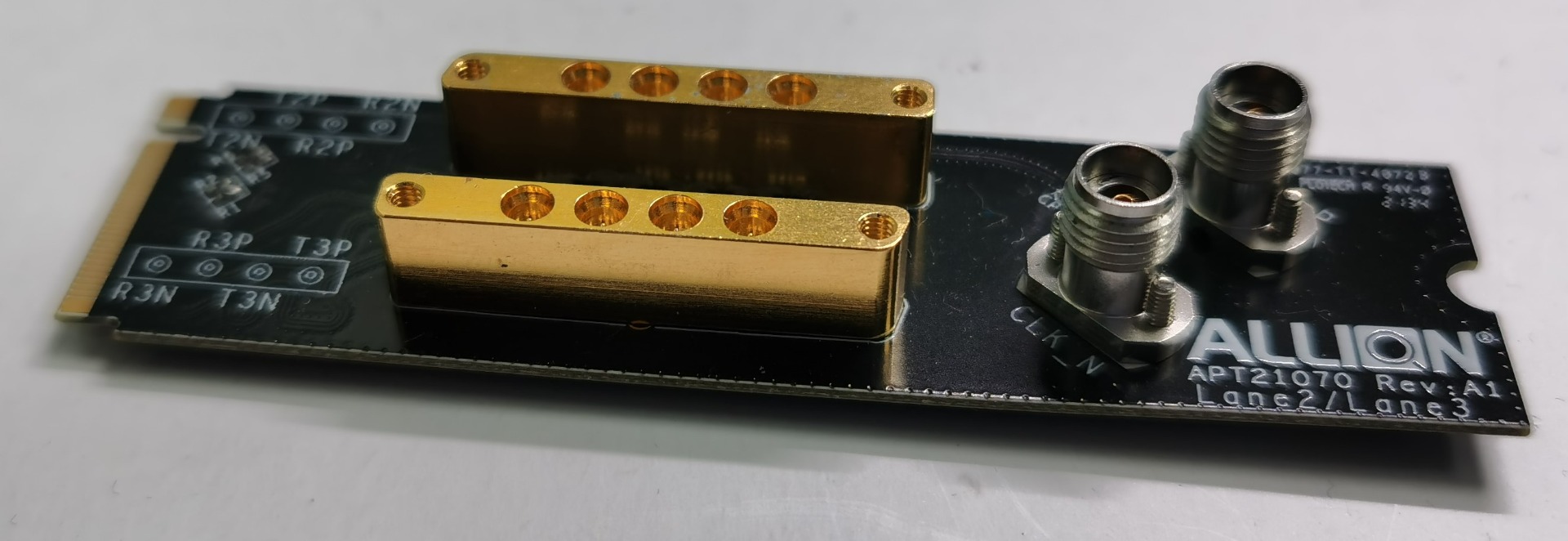

APT21070b
1. PCIe M.2 M-Key Golden Finger
2. 2 SMPM Connector for Lane2/Lane3
3. 2 SMA Connector for Reference Clock
4. Dimesion : 22mm x 80mm
APT21070c
1. 2 SMA Connector for 2x Thru Clibration
2. Dimesion : 34.33mm x 80mm
