Overview

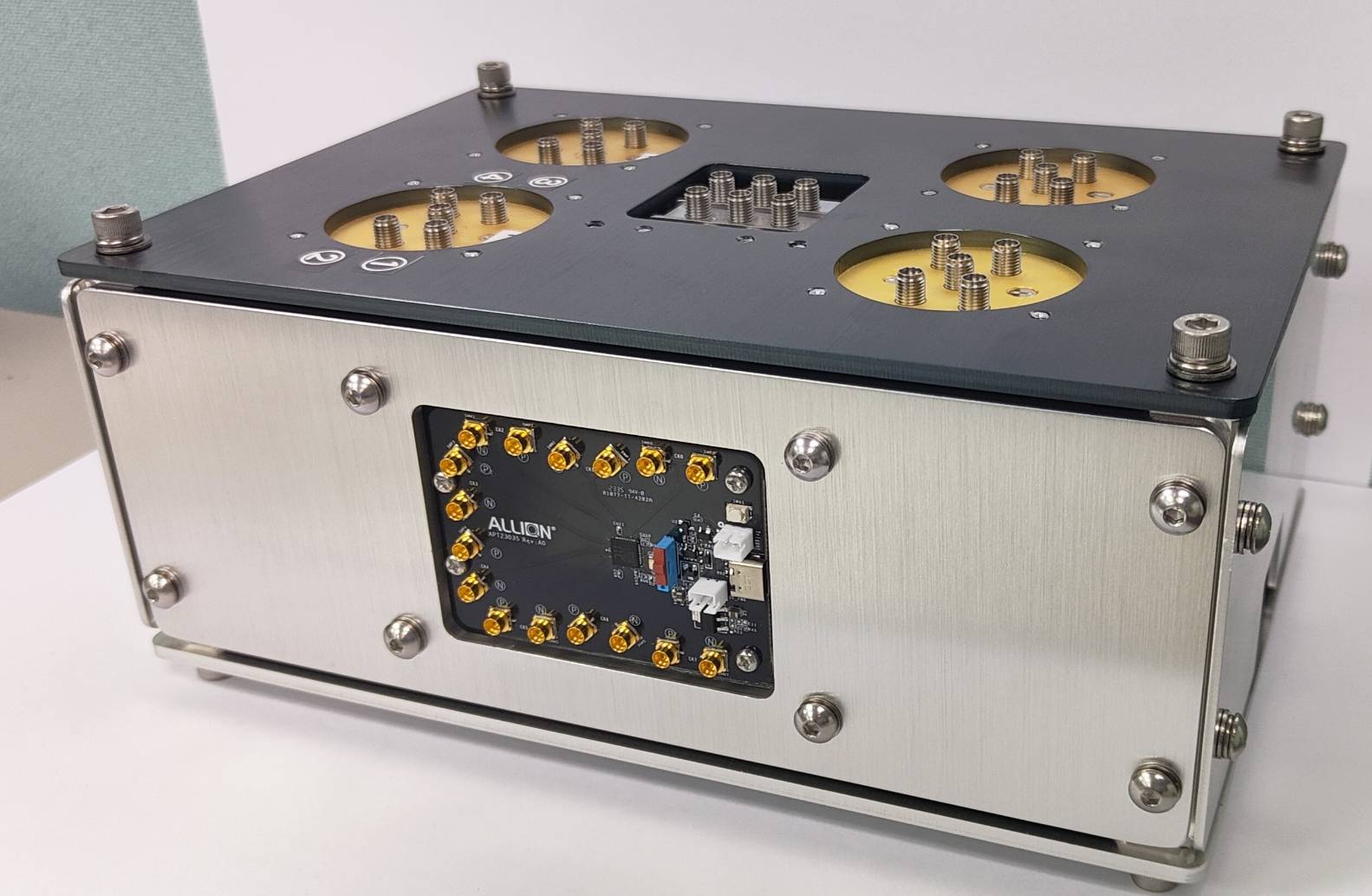

APMS-8T（Automatic PCIe Multilane System）is one of APMS products series . APMS-8T can perform 8 Lanes Transmitter or 4 Lanes Transmitter /4 Lanes Receiver Signals Electrical measurment composite with any Scopes , System can perfrom different interface such as PCIe、TBT、USB、HDMI、DP by change Test Fixtures.
Features
1.Following & Compatible Complaince Test specification
2.RF Switches control by S/W Utility to perfrom Automation
3.Flexible Interface configure by change Specific Test Fixture.
4.Test Scripts can be modification by Customer.
Product Specification
1.Four 1 by 4 40GHz RF switches with Terminator
2.Two 1 by 2 40GHz RF switches
3.Four 2.92 Male to 2.92 Male cables (15cm)
2.Four SMPM to 2.92 Male Cable Module (30cm)
3.One DC-Jack for 12V Adaptor
4.One USB-C for S/W Control
5.Dimension : LxHxD : 36mm x 18mm x 10mm
